step 1
Markers on the Plate

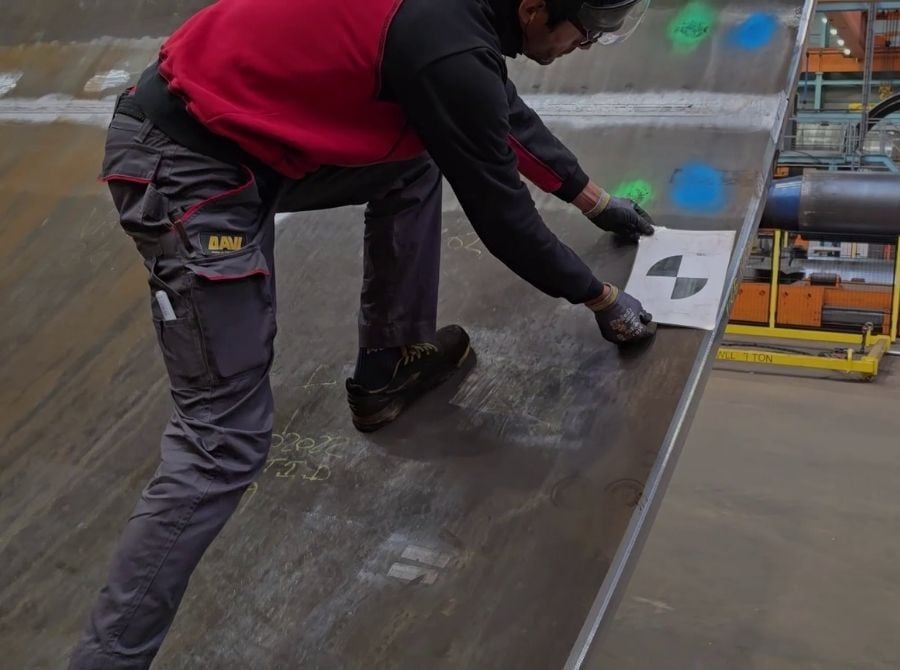

The operator places magnetic markers on the rolled workpiece.
measurement system
elongation

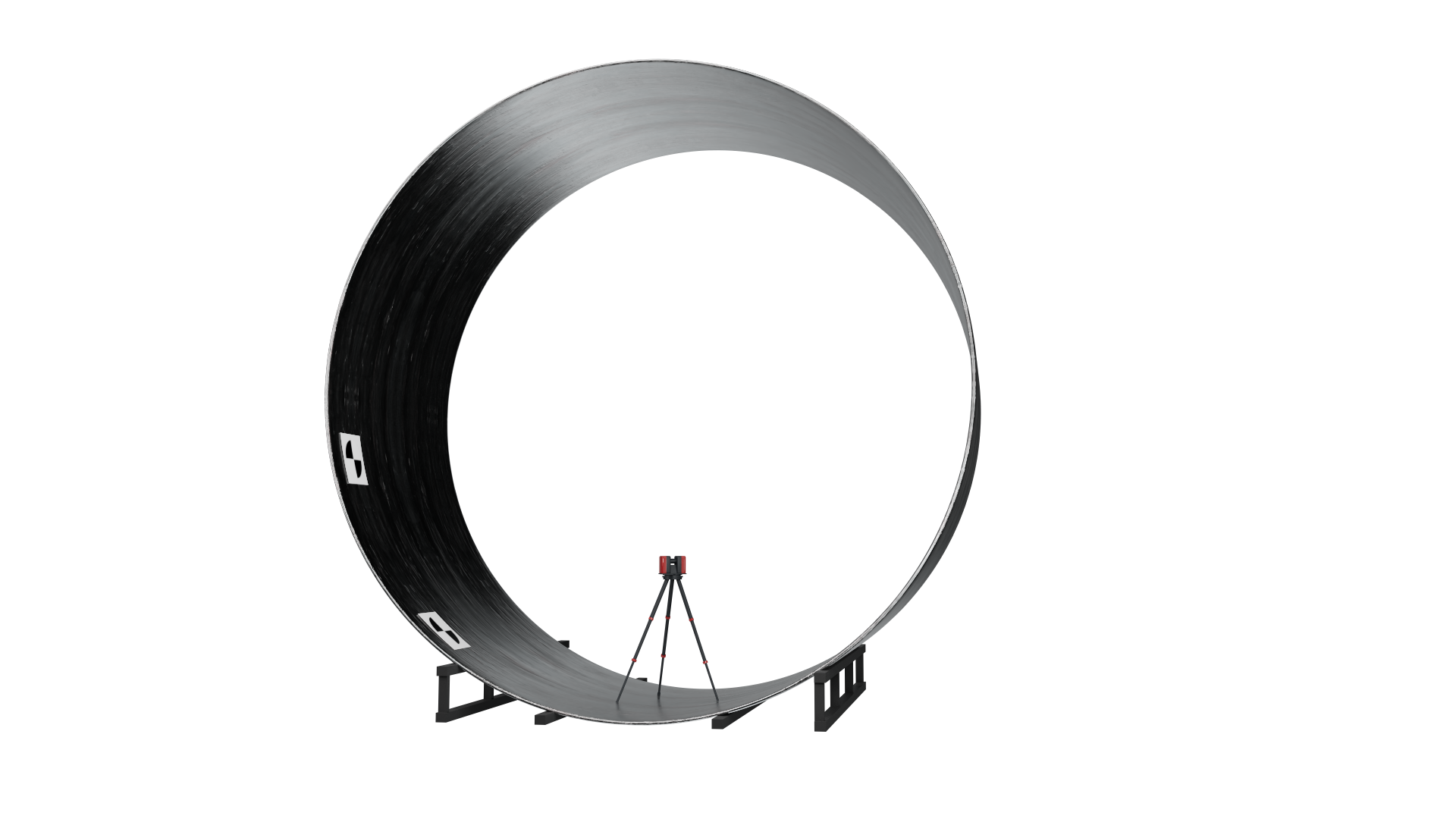

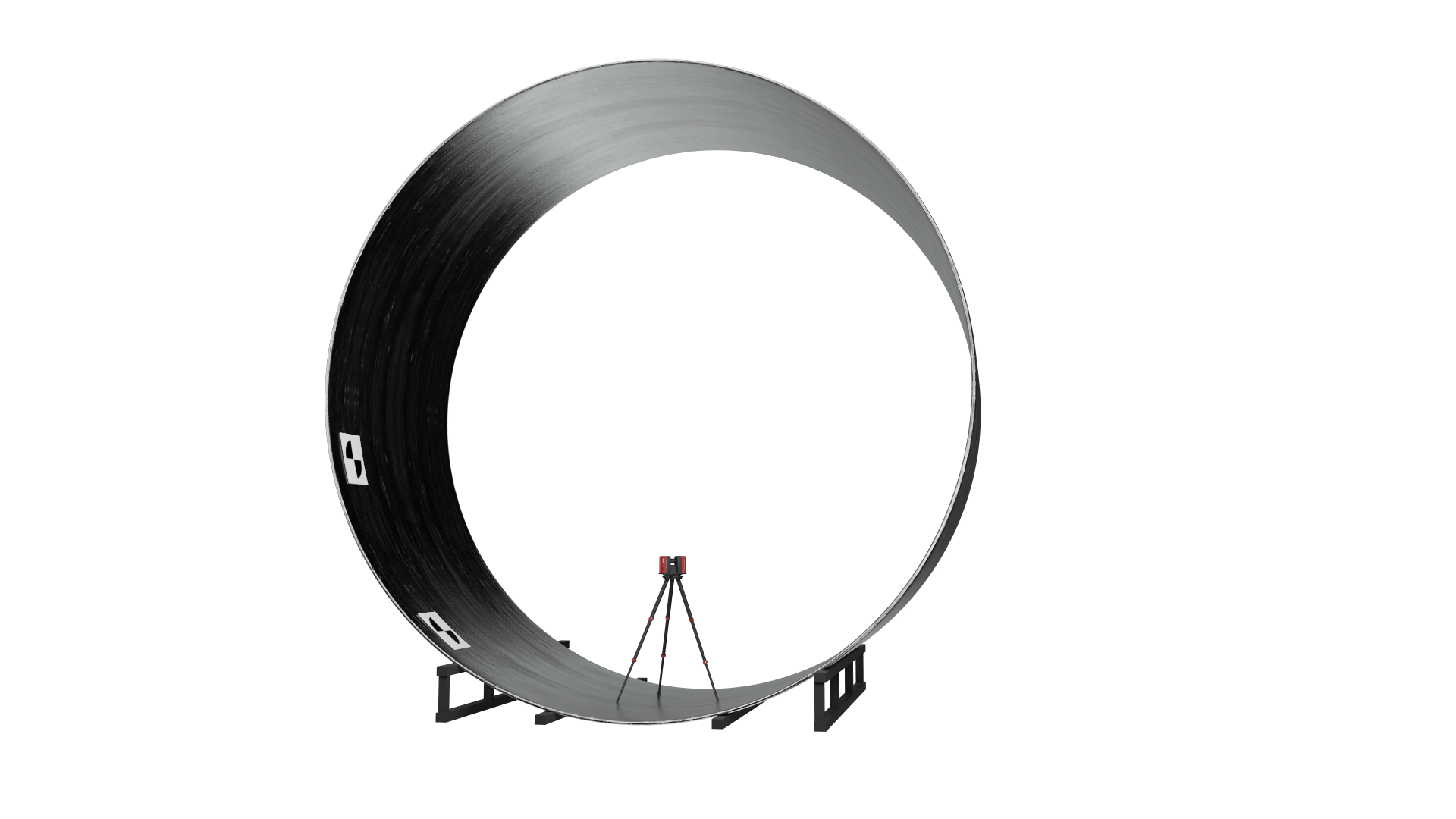

Automatic Scanning with Markers
When rolling heavy plates—especially conical shapes or large cylinders—achieving a perfect alignment for subsequent welding is a historical challenge. Traditionally, operators have had to measure plate profiles and circumferences manually.
davi solution
Conical and Cylinder Alignment
The Davi Elongation Measurement System completely replaces tedious manual checks with high-speed, automated laser tracking. The operational workflow is entirely hands-free after setup.
step 2
Plate Scan

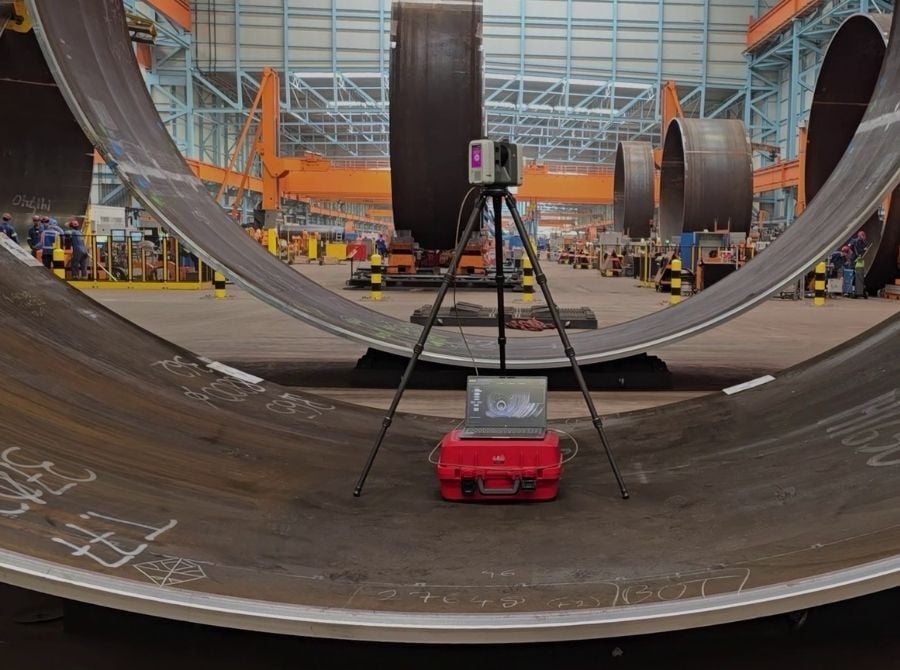

The automatic optical scanning unit scans the plate.
step 3
Exact Data

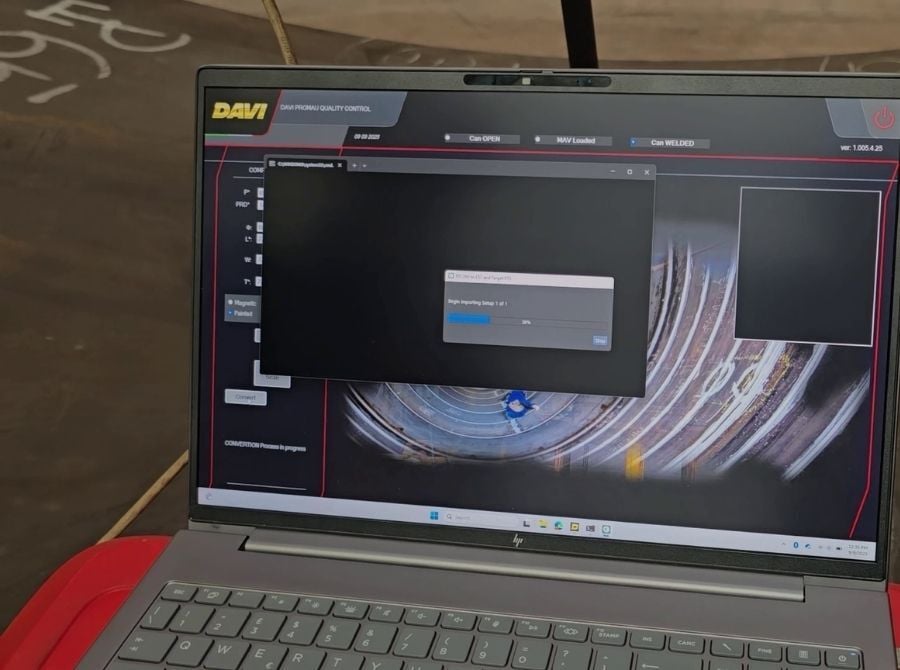

The system computes exact dimensional data instantly.
step 4
Measurement

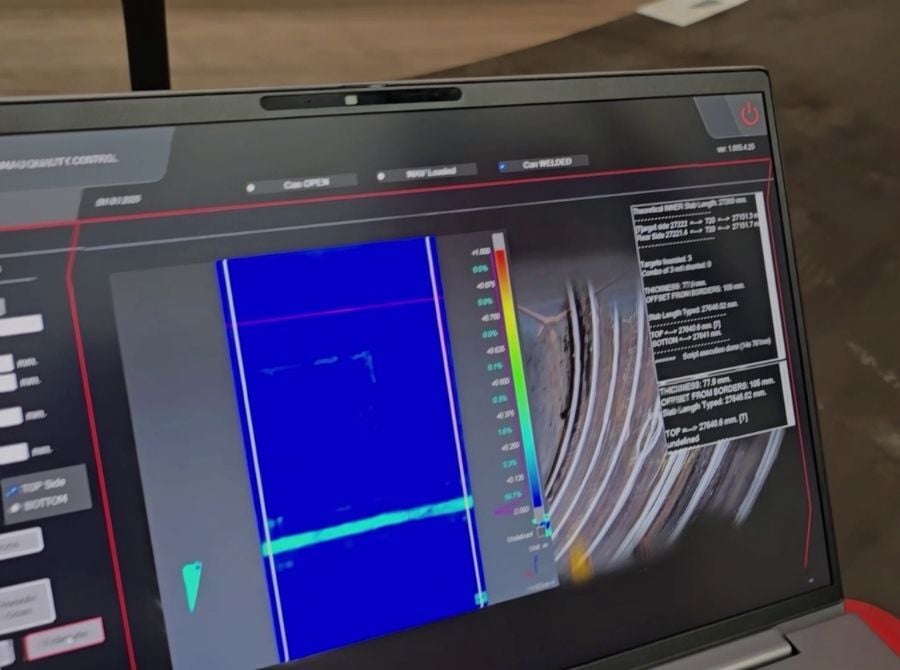

The console immediately provides complete, precise measurements of both side circumferences at a glance.
products
Wind Energy and Submarine
Discover Davi Plate Rolls where the Elongation Measuring Device finds its ideal application
